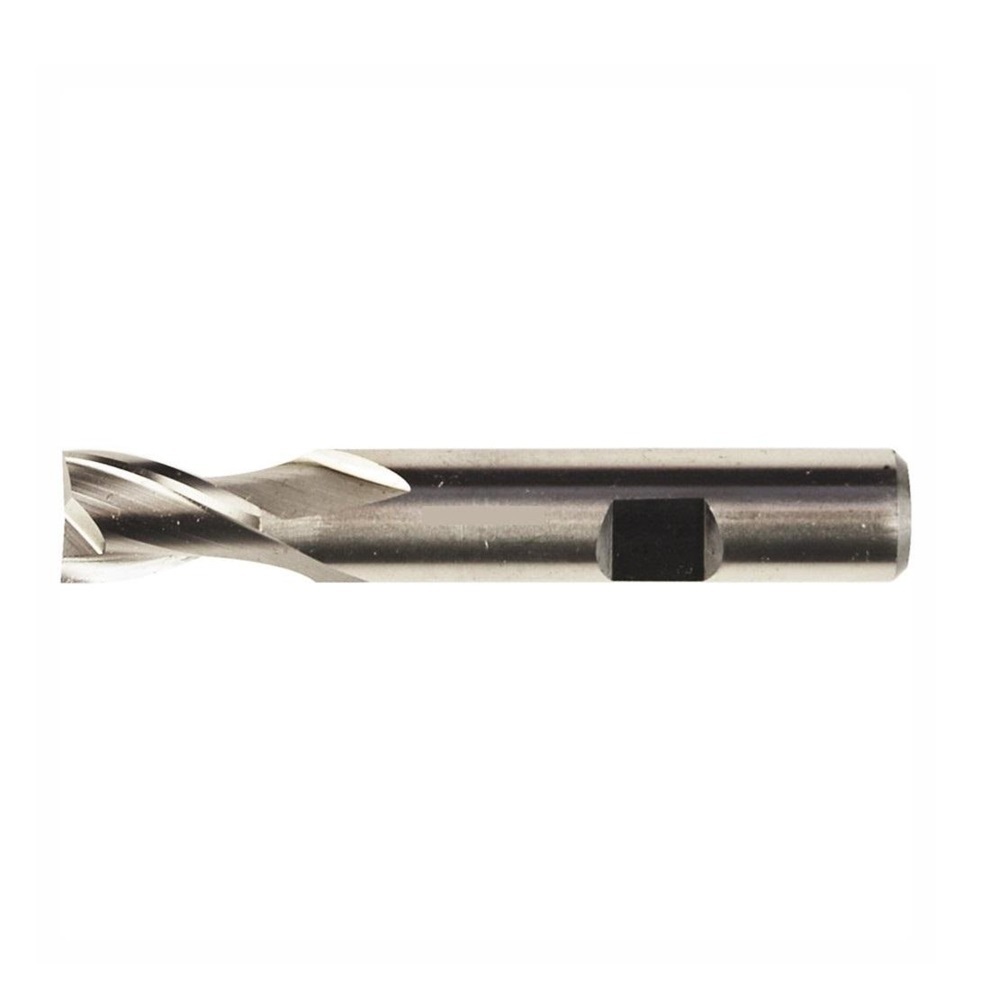

SWISS+TECH 22mm Weldon Shank 2-Flute Short Slot Drill

Features:

  • Length type short
  • End mill type slot drill
  • Finish coating uncoated
  • Plunge type centre cutting
  • Cutting direction right hand
  • Material cobalt high speed steel
  • HSS-Co construction for excellent durability and tool hardness
  •  2 flutes for efficient cutting performance and and chip control
  •  Ideal for general production machining for reduced downtime and tool replacement
  •  Weldon shank for greater tool stability

Specifications:

  • Colour: ‎Stainless Steel
  • Material: Cobalt High Speed Steel
  • Cutter Diameter: 22mm
  • Cutter Diameter Tolerance: e8
  • Cutting Direction: Right Hand
  • End Mill Type: Slot Drill
  • Finish/Coating: Uncoated
  • Flute Length: 22mm
  • Flute Type: Helical
  • Length Type: Short
  • Material Grade: M42
  • Number of Flutes: 2
  • Overall Length: 88mm
  • Plunge Type: Centre Cutting
  • Series: 1
  • Shank Diameter: 20mm
  • Shank Diameter Tolerance: h6
  • Shank Type: Weldon Flat
  • DIN: 327



(CW5965)

SKU CW5965
Barcode # 9354506016166
Brand SWISS+TECH
