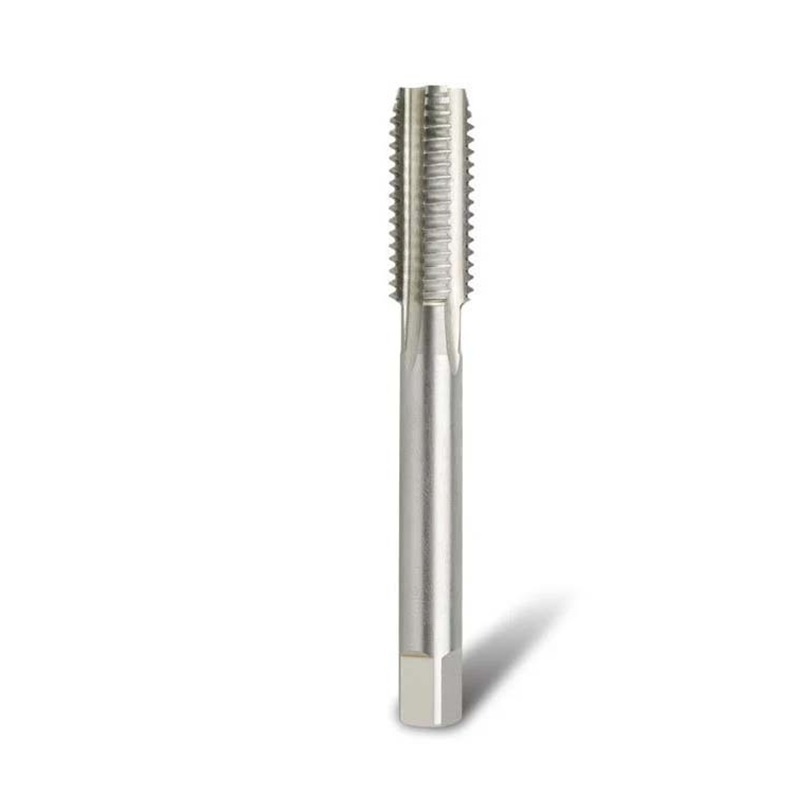

Sherwood HSS Taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast irons and non-ferrous materials such as Aluminium, Brass and many others.

Manufactured with precision ground flutes for producing accurate thread forms, Sherwood Taps are available in all the popular thread forms and as straight Flute Hand Taps in 3 leads, Fluteless, Spiral Flute, or Spiral Point Machine Taps and also Long Series.

Sherwood Tap dimensions conform to ISO529 apart from NPT Forms which conform to ANSI 94.9. Straight Flute and Fluteless Taps are manufactured with a standard Bright Finish whereas the Machine Taps have an Oxidised Finish for best results, dissipating the heat build-up associated with these applications.

Colour: ‎Stainless Steel

Material: High Speed Steel

Chamfer: Second

Class of Fit: 3B

Dimensions Standard:  ISO 529

Finish/Coating: Bright

ISO Category: K / M / N / P

Material Application: Aluminium / Cast Iron / Stainless Steel / Steel

Number of Flutes: 4

Overall Length: 118mm

Shank Diameter: 16mm

Square Width: 12.5mm

Thread Direction: Right Hand

Thread Length: 38mm

Thread Size: 7/8 inch

Thread Standard: UNC

Threading Tap Type: Hand Tap

TPI: 9
