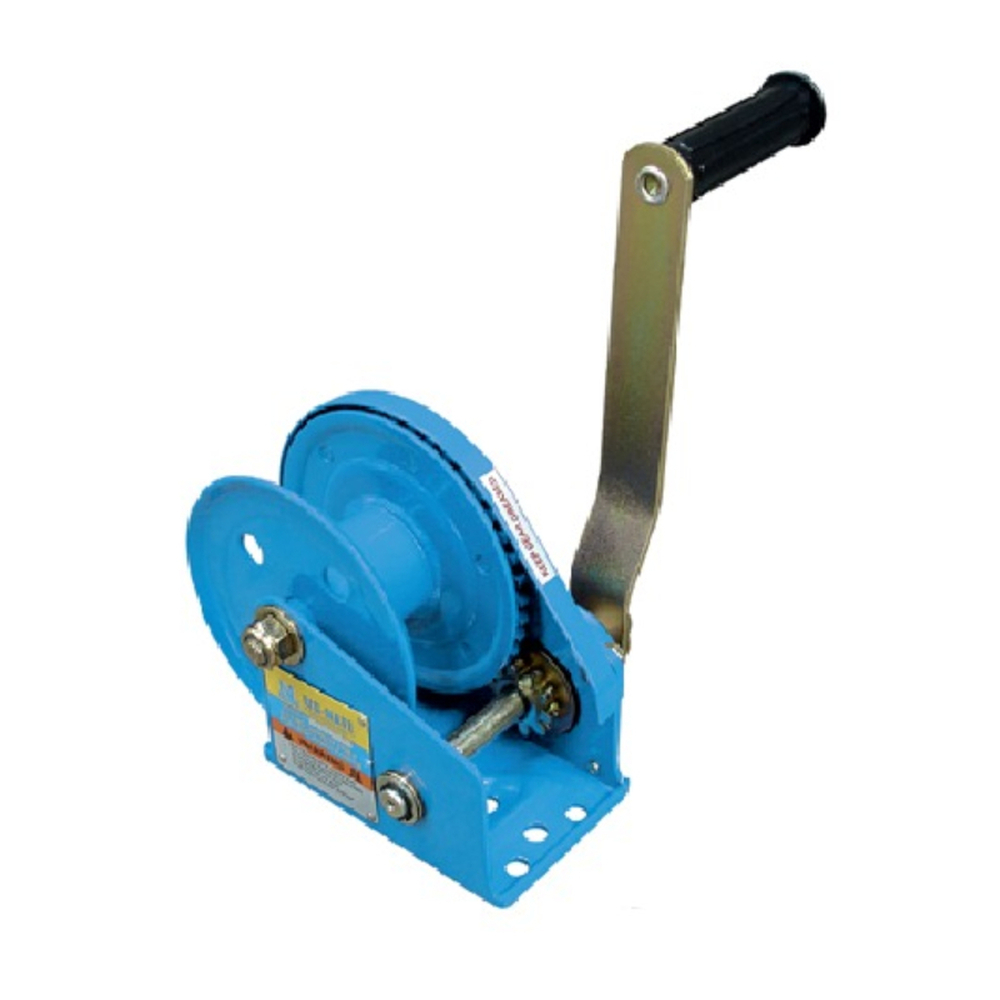

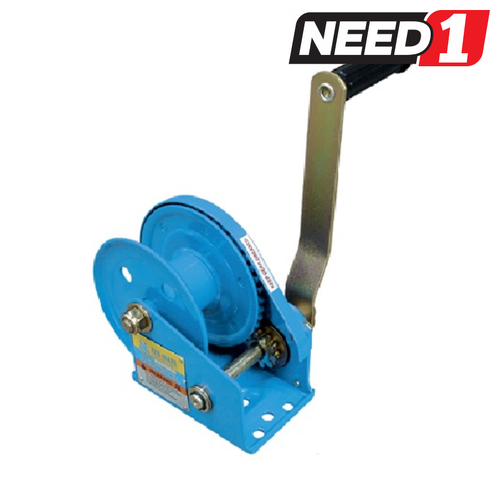

RIG-MATE Hand Brake Winch, Lifting Capacity 270kg, Pulling Capacity 540kg


The Rig-Mate brake winches can be used in general purpose pulling or lifting applications, are made from a rugged one-piece frame and are of a lightweight, compact and durable construction.



Features:

  • Manufactured from high strength alloy steel to ensure a long and trouble free working life
  • Large hub diameters to assist in wire rope spooling and extended winch rope life
  • The automatic brake ensures the suspension of the load in any position and the extra thick brake disc, gear and pawls are fully enclosed for maximum protection
  • Finished in baked enamel paint and features gold passivated gears and axle for long life and corrosion resistance



Specifications:

  • Pulling Capacity: 540kg
  • Lifting Capacity: 270kg
  • Effort Required to Lift Maximum Load: 15kgf
  • Hub Diameter 50mm
  • Gear Ratio: 4.1:1
  • Handle Length: 210mm
  • Recommended Wire Rope: 5mm 7x19 WSC B1960 or 2070
  • Weight: 3.3kg

(BRWHB270)

SKU BRWHB270
Barcode # 9354506010362
Brand RIG-MATE
